——Introduction——

　　Brick-making from muck—who else but us

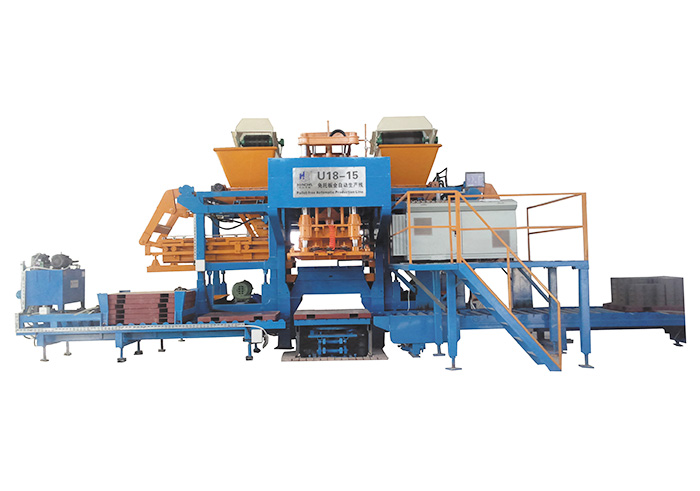

　　The U18-15 pallet-free fully automatic production line is a wall and floor brick forming system independently developed by our company. Effective production area up to 1.3×1.3 m²; product bulk density up to 2400 kg/m³, water absorption below 6%; product weight tolerance only ±1.5%, strength tolerance up to ±10%; product height tolerance controlled within ±0.2 mm; automatic stacking immediately after forming, pallet-free, no auxiliary facilities, no consumables; single-shift capacity of 150,000 standard bricks. With automatic packing, only 3 workers are needed; later loading/unloading also requires no manual labor!

　　Immediately stacking after forming not only saves the large investment in pallets required by the traditional process, and the moving demolding of the forming main machine also saves links such as “lift table, down table, product transfer, rail car, and entry/exit of curing kilns”. The main machine also functions as a stacker, reducing many intermediate steps, reducing users' investment in supporting equipment and facilities, and making maintenance easier—truly saving both money and labor.

　　The equipment is suitable for manufacturing high-quality, high-strength concrete or fly-ash blocks and is one of the advanced and reliable models in the domestic market. Production lines with various configurations can meet most users' processing requirements and output needs for concrete products.

　　1. Large forming area: Effective forming area up to 1.3 m×1.3 m.

　　2. High single-machine output: One forming cycle completes in 15–18 seconds; produces 18 pieces of 390×190×190 per cycle; up to 20,000 standard bricks per hour.

　　3. Pallet-free production: Stack immediately after forming; no need to invest in hundreds of thousands of pallets.

　　4. High-density forming: Bulk density up to 2.3 t/m³; water absorption less than 8%; high density enables high-strength products with less cement; even materials with higher clay content can yield high-quality products.

　　5. Saves a lot of labor: Stack immediately after forming; no curing transfer, stacking, or auxiliary equipment required.

　　6. Mobile modular design: Divided into several modules for quick on-site installation; ready to produce upon setup; no plant construction lead time; can be quickly relocated with projects and markets.

　　7. Project operation services available: Responsible for quality management, capacity assurance, cost control, equipment maintenance, and mix design process.
