——Features——

　　Honcha focuses on customizing production line configurations and provides solutions from simple lines to fully automatic lines according to different customer needs.

　　Simple production line process: put different aggregates into the batching station for automatic proportioning and weighing, then mix with cement from the cement silo. All materials are then sent to the mixer. After mixing evenly, the belt conveyor transports the material to the block forming machine. After vibration and pressing, the formed products are cleaned by the brick surface cleaner and transferred to the elevator. Then a forklift or two workers deliver the products to the yard for natural curing.

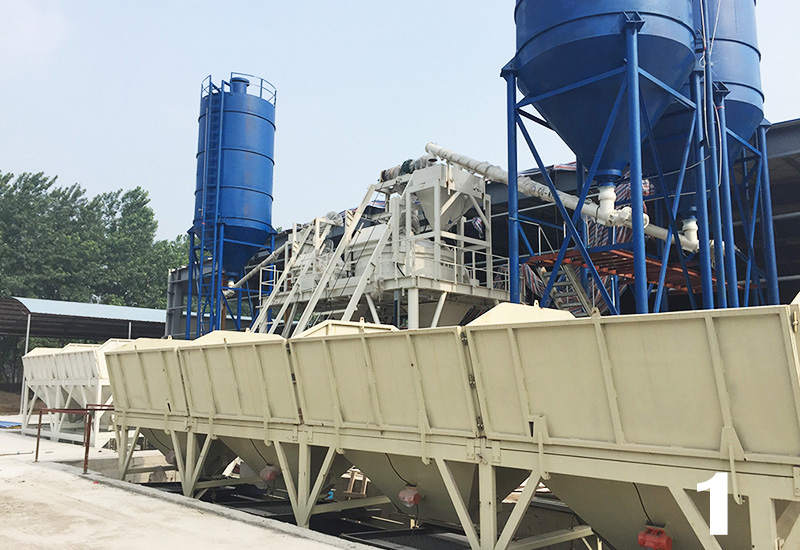

　　1. Batching and Mixing System

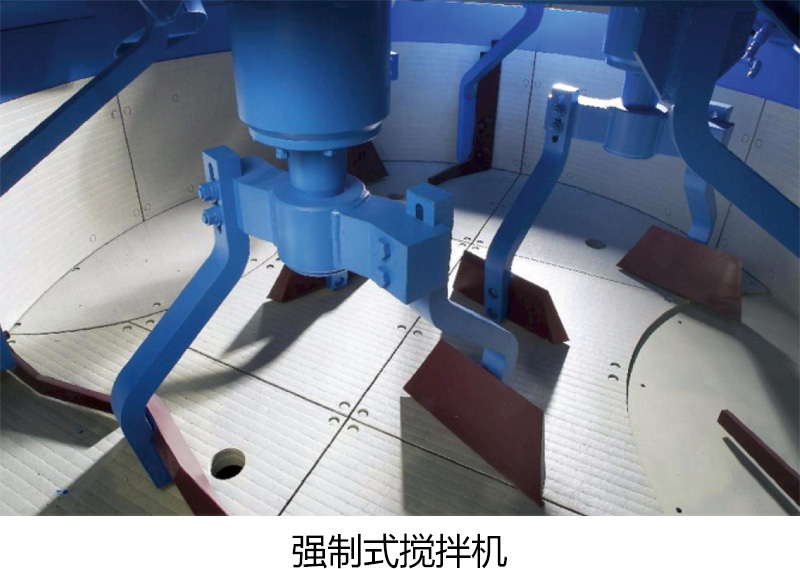

　　The batching and mixing system consists of a cement silo (fly ash silo), automatic batching machine, conveyor, compulsory mixer or planetary mixer, cement scale, screw conveyor, etc. It measures and mixes various raw materials according to preset proportions, and conveys them by conveyor to the forming machine.

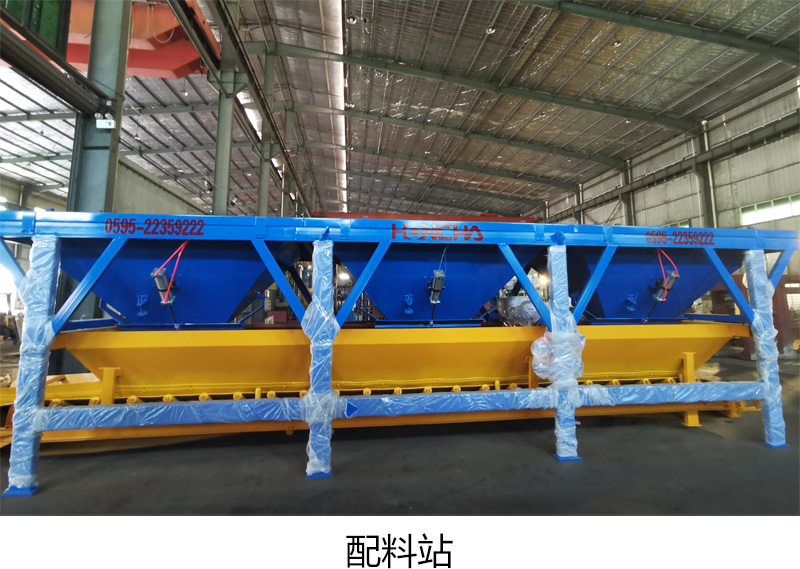

　　● The automatic batching machine can measure two to four kinds of materials and can be selected to match different forming equipment requirements.

　　● The cement silo together with a cement scale and screw conveyor ensures more accurate cement dosage and reduces pollution of the working environment.

　　● The system is controlled by a PLC programmable computer; operation is simple and reliable and can be integrated into a centralized control system.

　　● The optional humidity sensing system can measure the moisture content of various raw materials, control the water addition ratio, and thus ensure product quality.

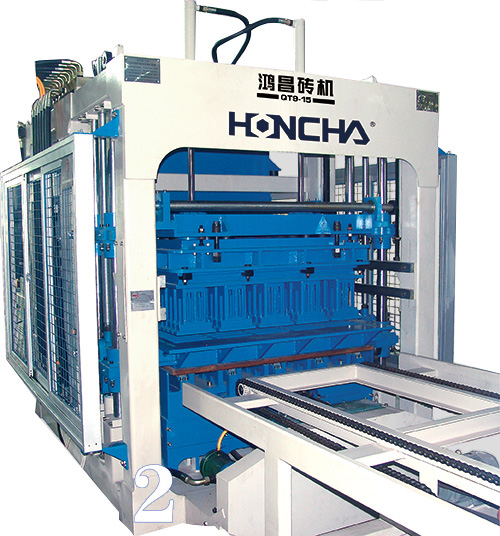

　　2. Block Forming Machine
　　The forming machine uses computer-intelligent control with hydraulic transmission and vibration-pressing forming. According to the user’s production requirements, by changing molds it can produce various concrete products. One machine for multiple purposes, stable performance, high production efficiency, and low maintenance rate. The equipment supports real-time monitoring, fault alerts, human-machine interaction, and remote control.
　　Available block forming machine models for the simple line: QT6-15, QT8-15, QT9-15, QT10-15, QT12-15.

　　3. Elevator

　　After being cleaned by the brick surface cleaner, the products are conveyed to the elevator, then a forklift transports the products together with the pallets to the yard for natural curing.

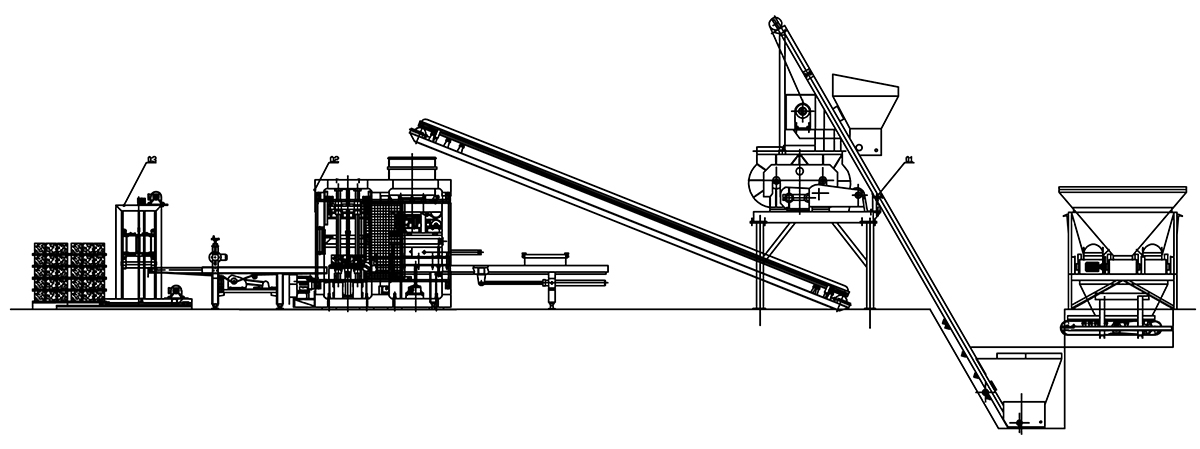

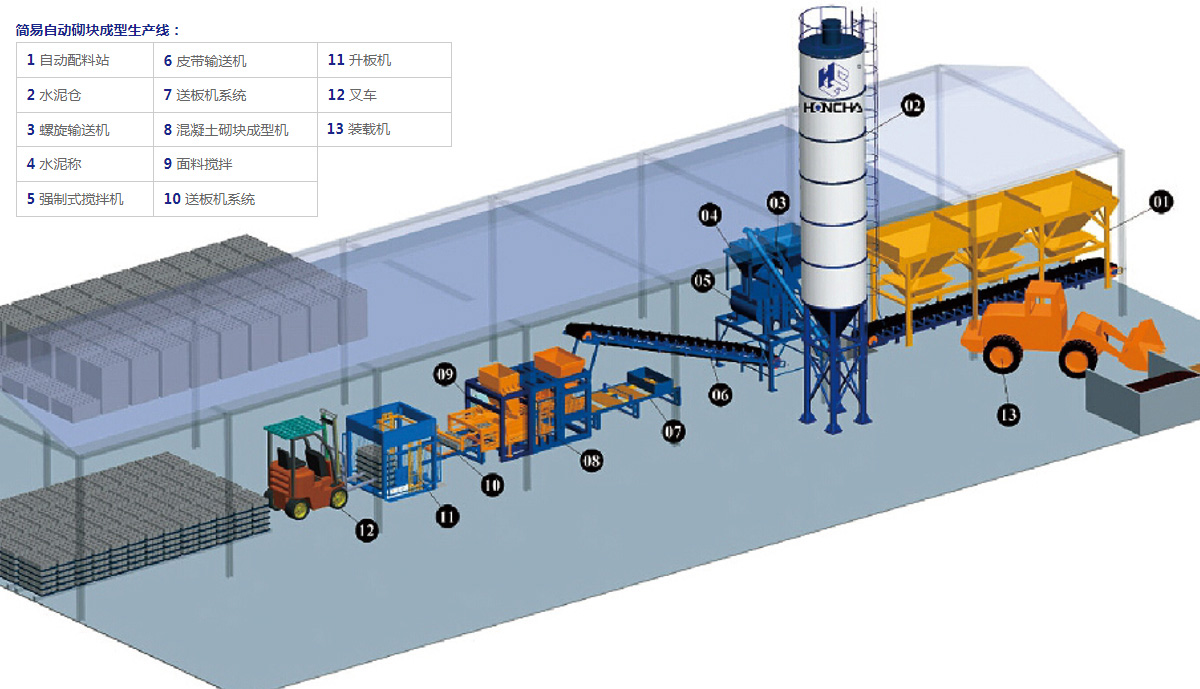

  　——Simple Automatic Production Line Diagram——
